Description

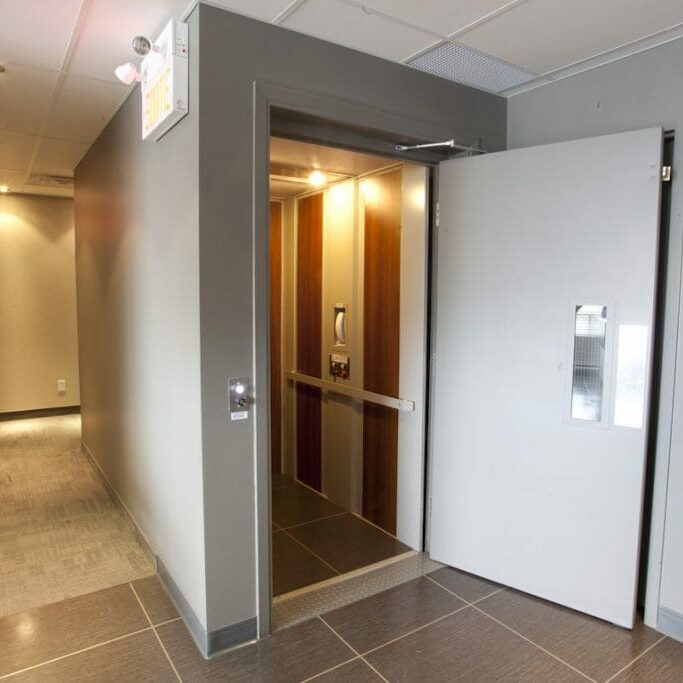

This elevator has the same features as the AR-135 model (hydraulic residential elevator), but meets CSA B 355 commercial standards. It can therefore be installed in any public building.
Sturdy, reliable and quiet, this elevator meets the needs of any business owner who wants to make the business accessible to all clients.
Cost
Variable. Contact us for your personnalized quotation.
Delivery time
From 4 to 6 weeks following plan approval.
Installation time
From 4 to 5 days.
Additional equipment information
Maximum capacity: one person in a wheelchair and one helper
Maximum load: 340 kg (750 lb)
Drive type: cable-assisted hydraulic
Motor: AC, 120 volts
Nominal speed: 0.12 m/s (24 ft/m)
Maximum travel: 7,000 mm (276 in)
Brakes: parachute type
Emergency lighting
Controller
CSA LR45147 certification
Special features
Industrial Télémécanique controller and panel
Stronger (Delrin) bearings
Anti-skid floor surface
QUICK DELIVERY
FAST INSTALLATION
PERSONALIZED INTERIOR
Ideal for half-cabs
Applicable standard
CSA/B355-09
Equipment category
Interior residential elevator
Vertical, closed shaft
Type of vehicle
One person in a wheelchair
Floor dimensions:
860 mm x 1,370 mm (34 in x 54 in)
One person in a wheelchair and one helper
Floor dimensions:
860 mm x 1,520 mm (34 in x 60 in)
Maximum floor dimensions:
915 mm x 1,525 mm (36 in x 60 in)
