Vista 613 platform lift



Our most popular model, this lift is equipped with a simple mechanism based on a worm screw principle. Sturdy and reliable, this machine operates in all sorts of bad weather. This open shaft platform lift is versatile and is available with an enclosure, that is, a shaft for indoor installation. It is the perfect solution for going up or down, both inside and outside. For commercial application, it is also available in a 1,000 lb capacity. In short, it is right for any project. It gets top marks in the “nice, good and cheap” category!


Variable. Contact us for your personnalized quotation.

Delivery time

Allow 4 weeks on average.

Installation time

One day.

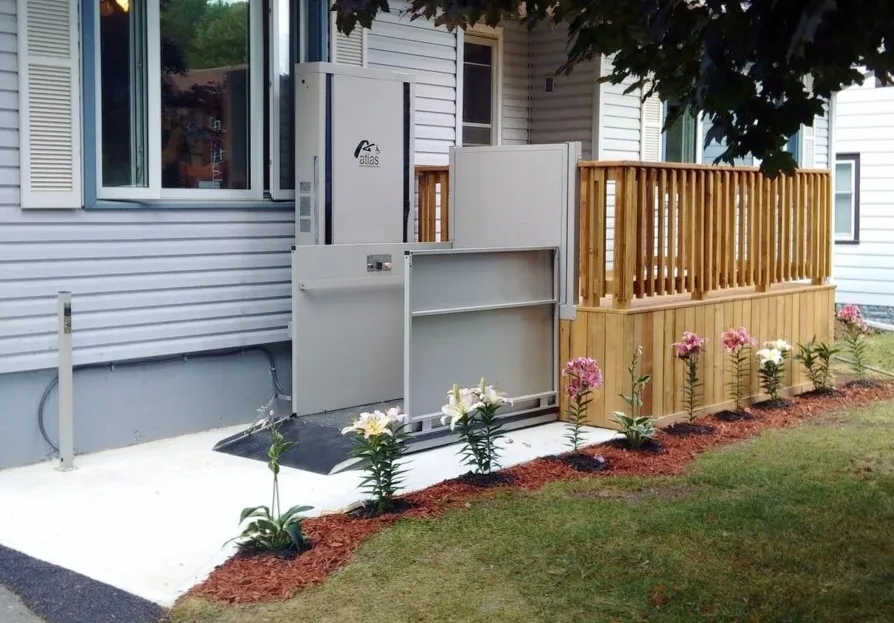

Vista-613_180_palier inferieur

Additional equipment information

Maximum capacity: One person in a wheelchair and one helper Maximum load: 340 kg (750 lb) 1,000 LB OPTION AVAILABLE Drive type: screw and nut Motor: 24VDC Nominal speed: 0.05 m/s (9 ft/m) Other speed available: 0.07 m/s (14 ft/m) Maximum travel: 2,500 mm (98 in) Controller: CSA / LR45147 Special features Fast climbing speed Industrial Télémécanique controller and panel Weatherproof control buttons Stronger (Delrin) bearings Flexible impact-resistant paint finish Anti-skid floor surface QUICK DELIVERY FAST INSTALLATION Applicable standard CSA/B613-00 Equipment category Indoor/outdoor platform lift Vertical, open shaft Type of vehicle Platform for: One person in a wheelchair Floor dimensions: 860 mm x 1,370 mm (34 in x 54 in) One person in a wheelchair and one helper Floor dimensions: 860 mm x 1,520 mm (34 in x 60 in) ***Maximum floor size: 1,018 mm x 1,679 mm (40 in x 66 in) ***
